Nitrogen Injection Fire Protection System

Advanced Transformer Explosion Prevention & Fire Protection

Power transformers are among the most critical and expensive assets in electrical power systems. Any transformer failure caused by internal faults or fire can lead to severe financial losses, prolonged power outages, equipment damage and safety hazards.

At Achyuta Fire Safety, we provide advanced Nitrogen Injection Fire Protection Systems designed to detect transformer faults, prevent explosions and suppress internal fires before they escalate into catastrophic incidents.

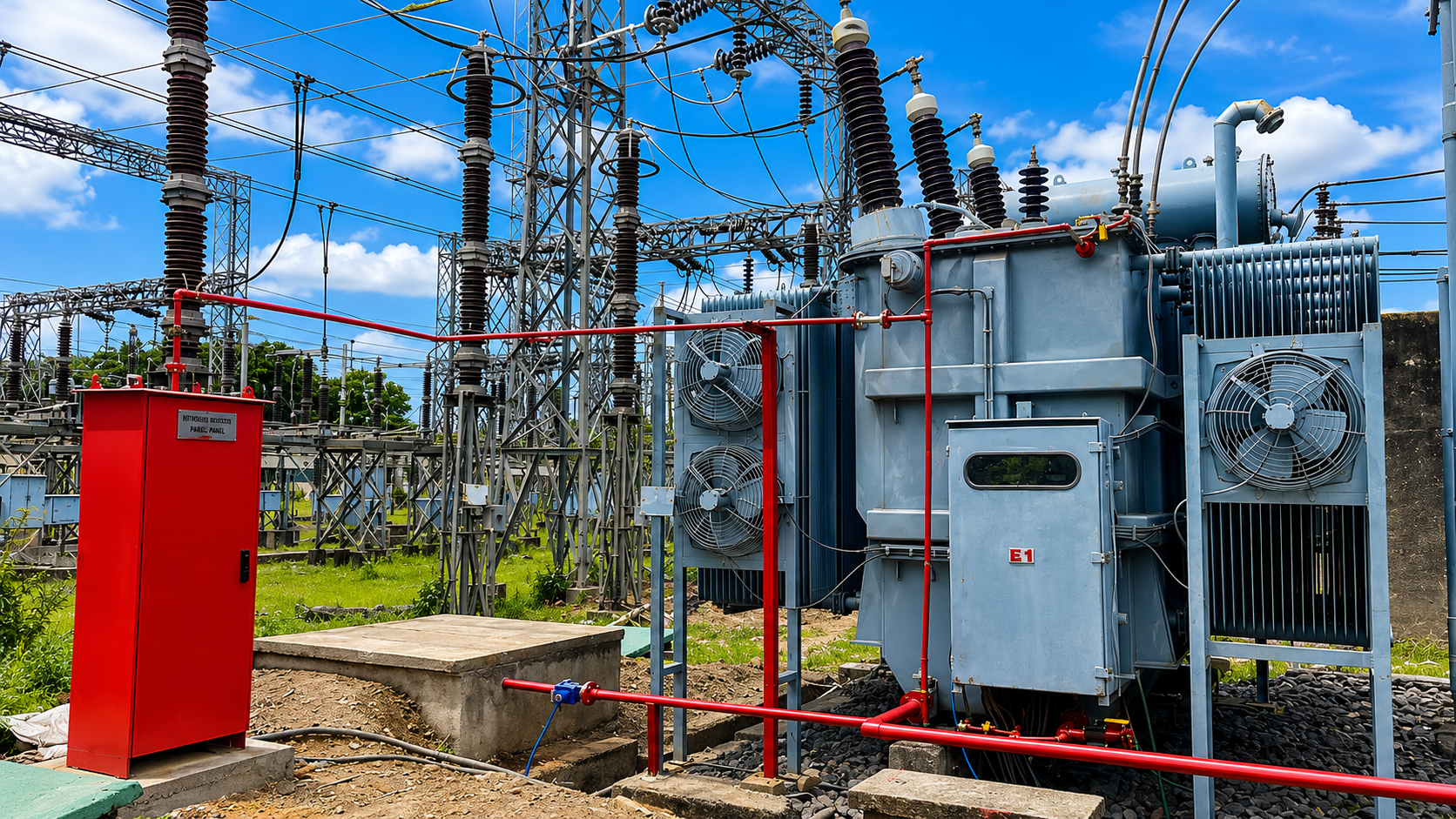

Our system is specially engineered for oil filled power transformers, ensuring reliable protection for substations, power plants, industrial facilities, utility companies and commercial electrical installations. Designed in compliance with industry standards, the system offers fast response, automatic operation and dependable performance, helping organizations protect their valuable transformer assets while ensuring uninterrupted power supply.

What is a Nitrogen Injection Fire Protection System?

A Nitrogen Injection Fire Protection System (NIFPS) is an automatic transformer protection system that prevents transformer explosions and extinguishes internal fires by injecting inert nitrogen gas into the transformer tank. The system is designed specifically for oil filled transformers, where the insulating mineral oil can ignite due to severe internal electrical faults.

Unlike conventional fire protection systems that respond only after a fire spreads externally, NIFPS acts inside the transformer. It detects abnormal pressure and temperature conditions, safely releases excessive pressure, evacuates hot oil to a dedicated oil tank and injects nitrogen gas into the transformer. The nitrogen gas displaces oxygen, interrupts combustion, cools the oil and prevents further fire development, significantly reducing the risk of explosion and extensive equipment damage.

Why is Nitrogen Injection Fire Protection Important?

Transformer fires generally occur due to internal electrical faults that generate excessive heat and combustible gases within the transformer tank. If these gases ignite, the resulting pressure buildup can rupture the tank, causing explosions and rapidly spreading fire to nearby equipment.

Common Causes of Transformer Fires:

Without a dedicated internal fire protection system, these conditions can lead to catastrophic failures, causing equipment damage, environmental hazards, operational downtime and significant financial losses. NIFPS provides an immediate response to these conditions, minimizing damage and protecting both personnel and infrastructure.

How Does the NIFPS Work?

The system operates automatically whenever dangerous fault conditions are detected inside the transformer:

• Fault Detection: The system continuously monitors the transformer through protective devices such as the Buchholz Relay and Pressure Relief Valve to detect abnormal gas generation and excessive pressure.
• Automatic Isolation: Once the fault is confirmed, the transformer is immediately isolated by tripping the circuit breaker to prevent further electrical damage.
• Oil Evacuation: The system automatically opens the oil drain valve, allowing hot transformer oil from the top portion of the tank to flow into a dedicated oil storage tank, reducing combustible volume and lowering pressure.
• Nitrogen Injection: Simultaneously, high-pressure nitrogen gas stored in cylinders is released into the transformer tank. Being an inert gas, nitrogen rapidly displaces oxygen, suppresses flames, cools the oil and prevents further ignition.
• Fire Suppression: The combined action of oil evacuation and nitrogen injection extinguishes the internal fire before it develops into an explosion, protecting both the transformer and nearby equipment.

Where NIFPS is Applied

Why Choose Achyuta Fire Safety?

At Achyuta Fire Safety, we understand that every transformer installation has unique operational and safety requirements. Our experienced engineers provide complete fire protection solutions tailored to your infrastructure:

A Nitrogen Injection Fire Protection System is a reliable solution for protecting oil filled transformers from fire and explosion. At Achyuta Fire Safety, we provide advanced, standards compliant NIFPS solutions, ensuring enhanced safety, reduced downtime and long term protection for your critical electrical assets.

We are a leading provider of the premier nitrogen injection fire protection system in Bhubaneswar and across all of Odisha. Whether you need complete transformer fire protection system setup or reliable maintenance for your existing transformer nitrogen system, our team is ready to deliver peace of mind — contact us today for expert consultation, installation, and maintenance services.
